Weather Station With RS485 Port, 4 Wires Cable, With Cable Length (10 Meter),WH65LP ,Easy to Operate

<p>Application: it is suitable for the customers to collect the data from the weather station through</p><p>the cable by their own designed software, to their own server(computer).</p><p></p><p>Attention: Before order, please ensure you know how to develop the software to collect the data. What</p><p>we can support only is to provide the communication protocol to you. </p><p>Connect to USB connector (4 wire cable):</p><p></p><p>Black wire: GND</p><p></p><p>Red wire: USB A(D+)</p><p></p><p>Yellow wire: USB B (D-)</p><p></p><p>Green wire: VDD (4.5V -6V)</p><p></p><p>Specifications</p><p></p><p>Communication protocol(UART format):baud rate:9600, parity:NONE, bits:8, stop:1</p><p></p><p>Temperature range : -30C--60C</p><p></p><p>Accuracy : + / - 1 °C</p><p></p><p>Resolution : 0.1C</p><p></p><p>rel.humidity range : 10%-99%</p><p></p><p>Accuracy: +/- 5%</p><p></p><p>Rain volume display : 0 9999mm</p><p></p><p>Accuracy : + / - 10%</p><p></p><p>&lt; 1000mm)</p><p></p><p>1mm (if rain volume &gt; 1000mm)</p><p></p><p>Wind speed : 0-50m/s (0~100mph)</p><p></p><p>&lt; 5m/s)</p><p></p><p>+/-10% (wind speed &gt; 5m/s)</p><p></p><p>Light : 0-300k Lux</p><p></p><p>Accuracy : +/-15%</p><p></p><p>Air Pressure : 300-1100hPa (8.85-32.5inHg)</p><p></p><p>Accuracy : +/-3hpa(700-1100hPa)</p><p></p><p>Measuring interval : 16 sec</p><p></p><p>Power supply:</p><p></p><p>connect to power(4.5v 6v)</p><p>Related Products:weather station,weather stations wireless indoor outdoor,weather stations,home weather station,outdoor weather station,weather station with rain gauge,weather station indoor outdoor,wifi weather station,indoor outdoor weather station,wireless weather station,barometer</p>

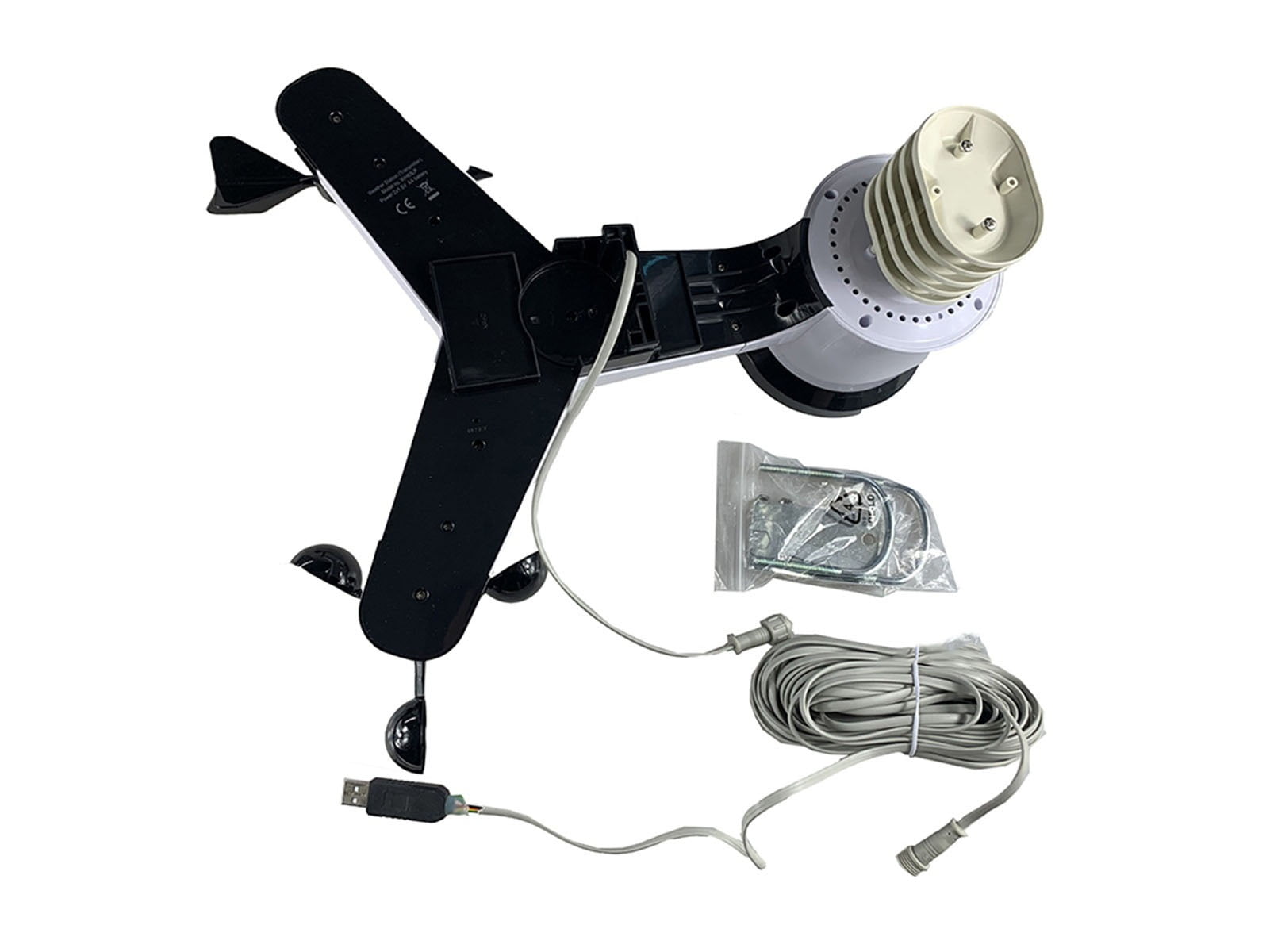

• This listing includes: 1 unit of weather station.

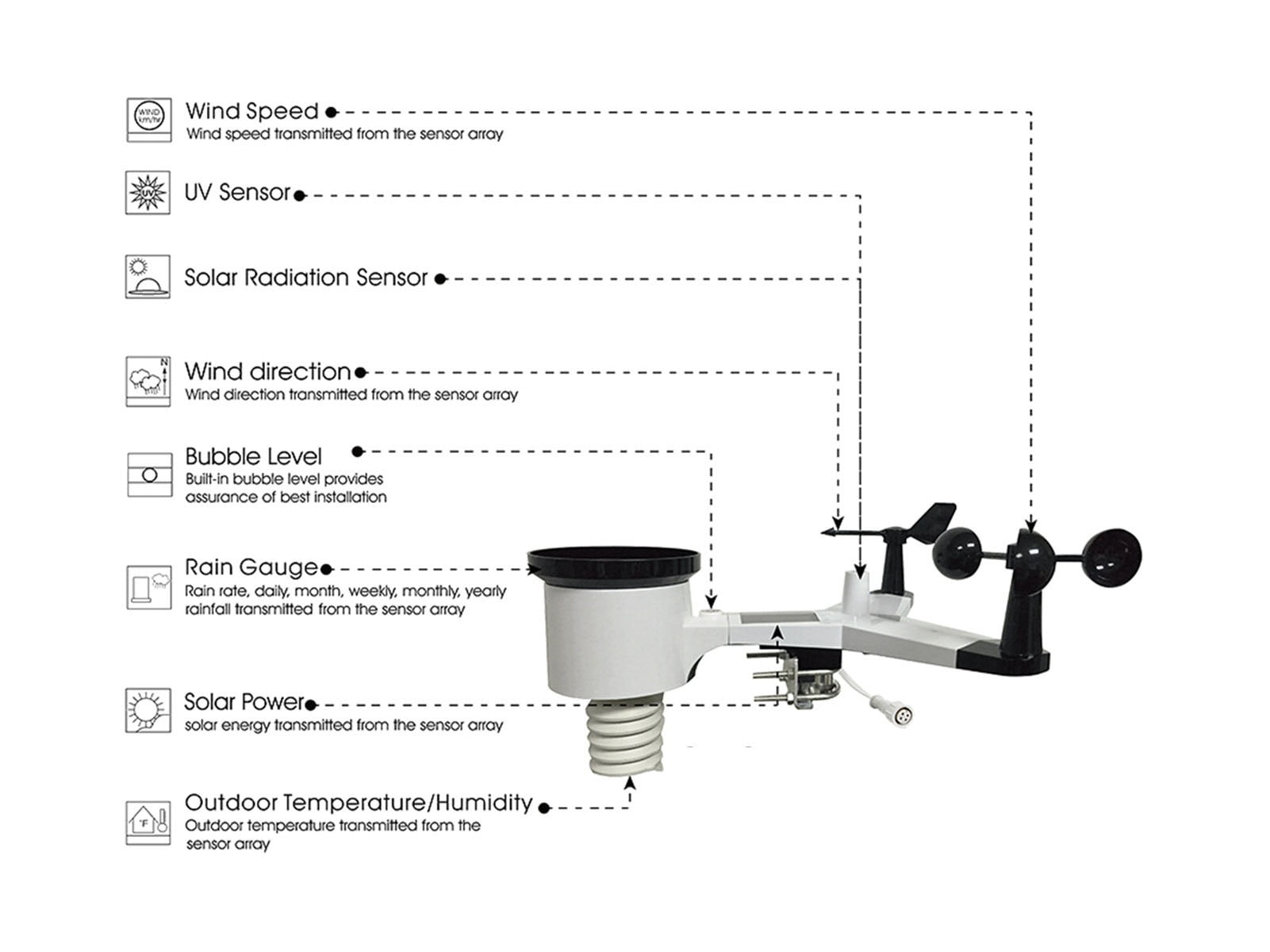

• - It will measure: temperature, humidity, rain volume, wind speed, wind direction, light, air pressure.
• - With RS-485 port(it is RS-485-UA-RT, not Mod-bus)
• - With cable: 4 wires cable, length: 10 meter

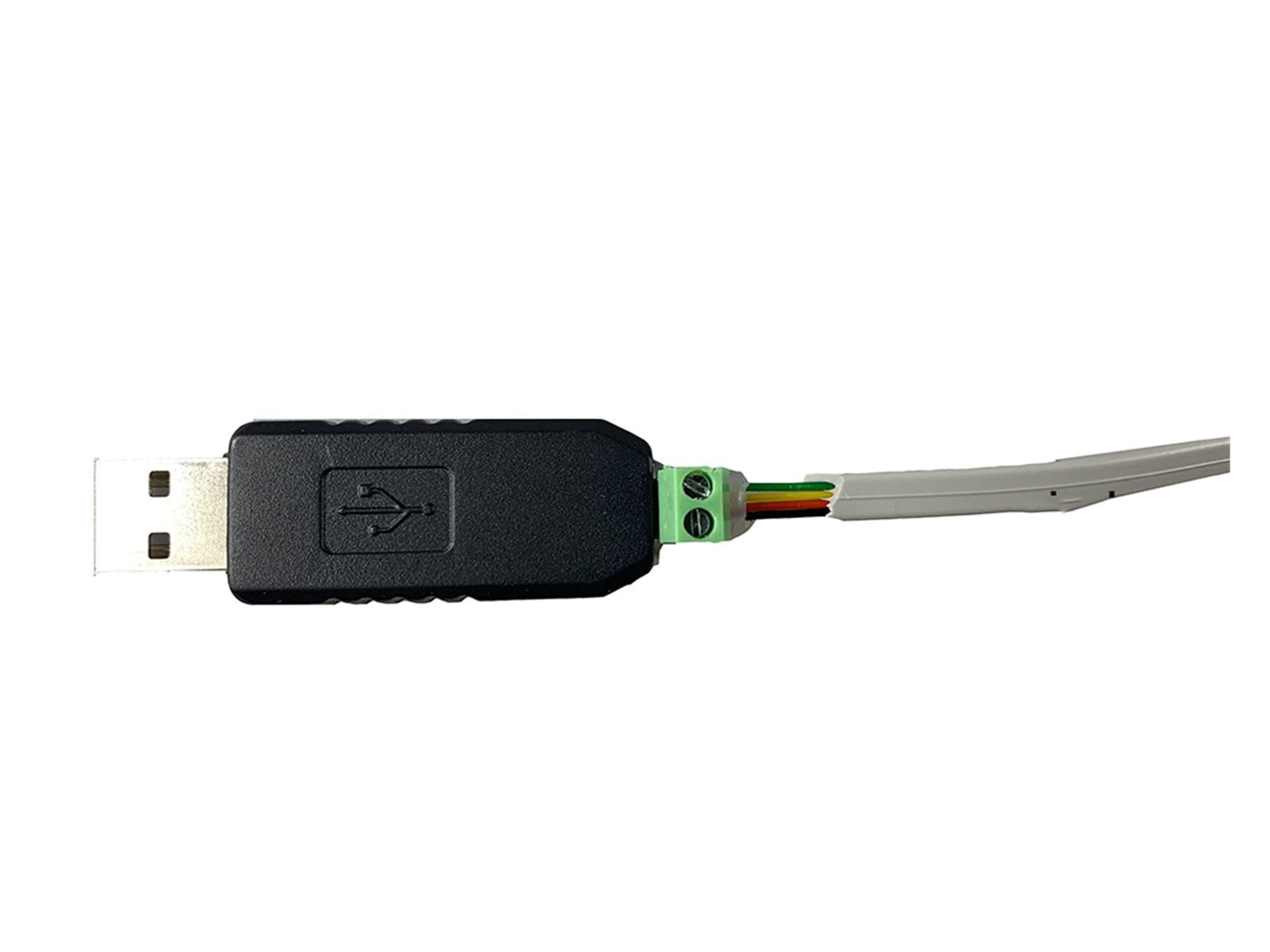

• - Including 1 unit of Adaptor (RS-485 to USB) (convenient to connect to computer)
