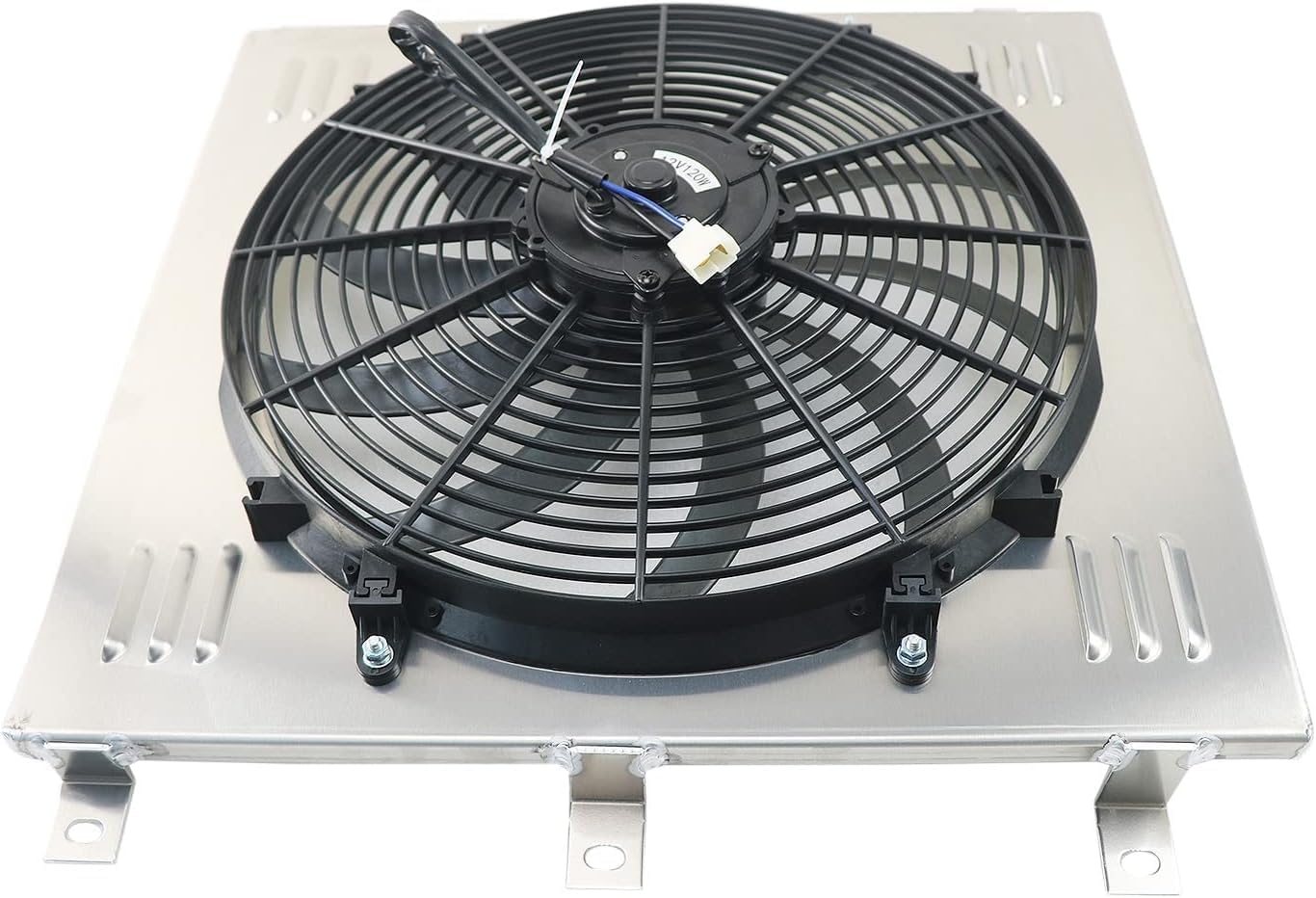

Aluminum Radiator Shroud Electric Fan for 1947-1954 Chevy C/K Series Truck 3100 3600 3800 3900

This Shroud Fan Compatible with: for 1947-1954 Chevy C-/K-Series Truck/ Pickup/ Van/ Suburban for 1947-1954 Chevy 3100 / 3600 / 3700 / 3800 / 3900 OE/OEM Part Number: CC5100, 5100, EC5100, AE5100, MC5100, DPI5100 Manufacturer Part Number: CC5100, 5100, EC5100, AE5100, MC5100, DPI5100 Interchange Part Number: FS5100, RA5100, KKS5100, 080081ANN, 080081AND, RA-CHEVYT47, RA-CHEVYT47-3 Fan Details: Voltage: DC 12 Volts Wattage: 120W Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050 Thickness (in): 2.500 Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator

• Shroud Fan Overall Size(inch): 22.65 x 20.5 x 2.17 / Fan Diameter (inch): 16 / Thickness (inch): 2.5
• The size of radiator which the shroud fan fits: Core Size(inch):20 3/4 x 19 1/4 / Overall Size(inch): 26 3/4 x 23
• Shroud Electric Fans Combo Compatible with 1947-1954 Chevy Fleetline Truck Fleetmaster Truck 3100 3600 3800 3900 3.8L 4.3L L6 Gas
• Aluminum alloy-shroud design with durable, TIG-welded construction; High Performance Racing Design, Improves Cooling by 30%+ Temp; Light Weight Direct Bolt-On OEM Fitment or Replacement
• Professional Installer is Highly Recommended; No Instruction Included!
